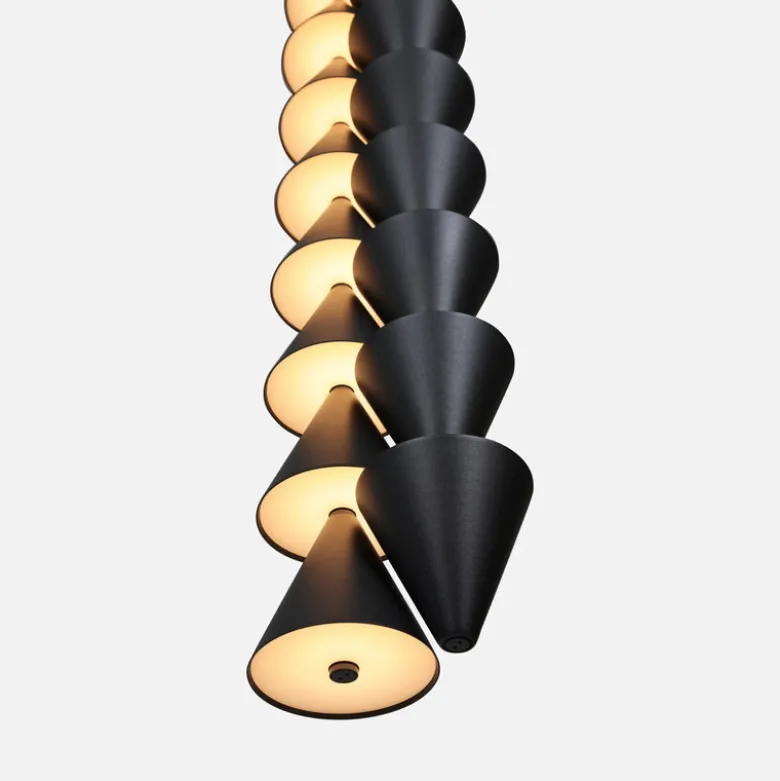

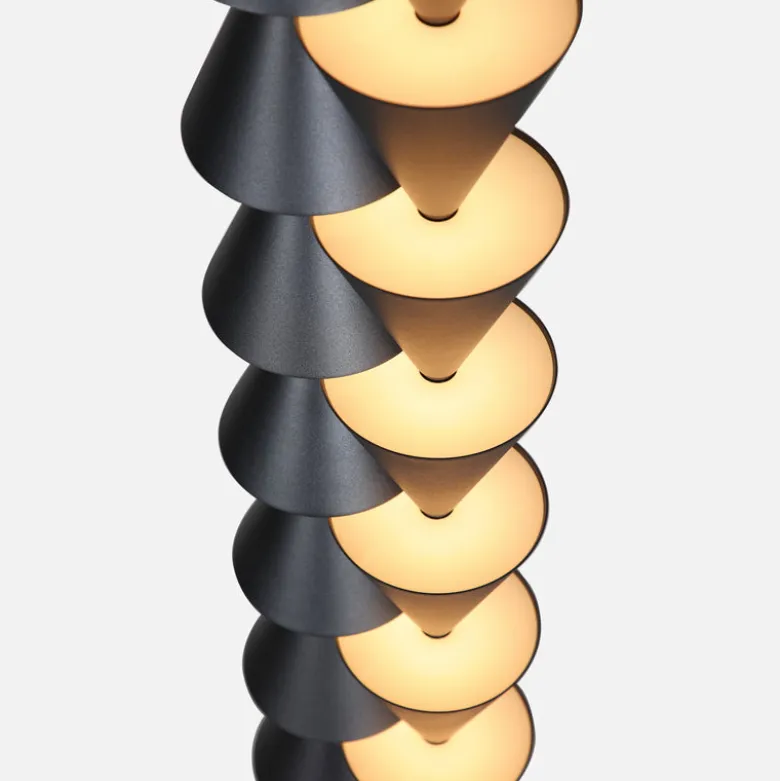

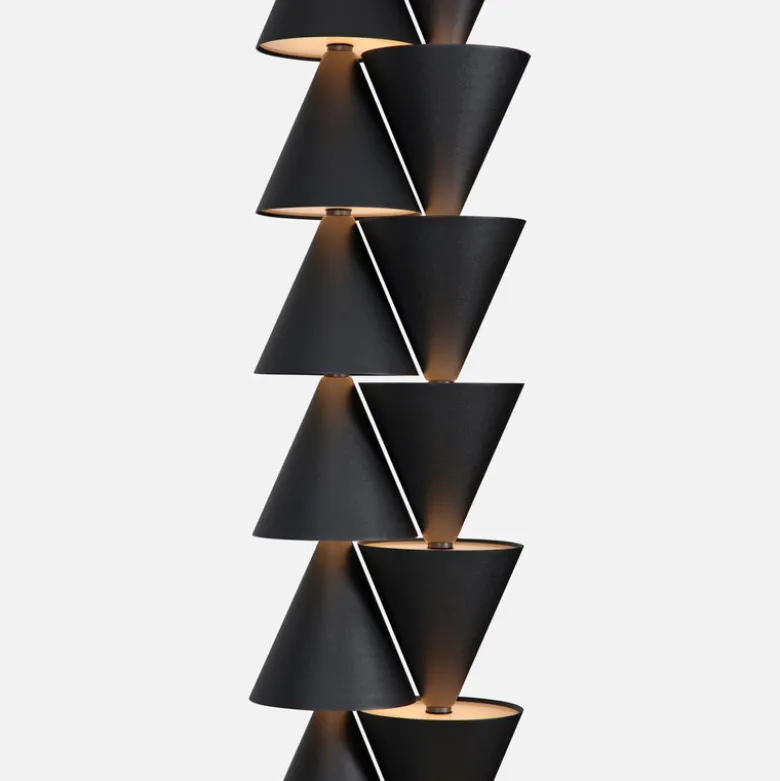

Legato Double Strings

Materials
Aluminum, brass, acrylic

Dimensions

Height dependent upon configuration
Standard configuration: 20 cones
L 10.5” x W 6.25” x H 60” (std config)
L 26.7cm x W 15.9cm x H 152cm (std config)
L 10.5” x W 6.25” x H 6”(per cone)
L 26.7cm x W15.9 cm x H15.2 cm (per cone)

Finishes
• Textured Graphite
• Textured Pearl

Weight
Dependent upon configuration
34 lbs / 15.4 kgs (std config)
1.7 lbs / 0.8 kgs (per cone)

Shipping
Dependent upon configuration
L 26” x W 26” x H 26” (std config)
L 66m x W 66cm x H 66cm (std config)

Shipping Weight
Dependent upon configuration
50 lbs / 22.7 kgs (std configuration)
2.5 lbs / 1.1kgs (per cone)

Lead Time
12-16 weeks

Light Source
Integrated LED
2700K
11,600 lumen / 72 watts (std config)
580 lumen / 3.6 watts (per cone)

LED Driver
Dependent upon configuration
2-16 cones: VZM060W-24
16-24 cones: VZM100W-24
25-36 cones: PWM-200-24
36 cones maxiumum
120-277VAC input voltage

Dimming
0-10V

Canopy
Dia 10.5” x H 1.75”
Dia 26.7 cm x H 4.4 cm

Drop Length
36”  /  91.4 cm drop provided
Custom drops are made per order and cannot be adjusted on site.
Drops longer than 36” will incur an additional fee.

Certification
UL Listing available upon request and will incur an additional fee.

Lead Time: 14-16 weeks
